Kenmore Progressive With Direct Drive Intelliclean User Manual

Feb 27, 2016  The direct drive brush roll only works intermittently. It is most likely due to the switch that senses whether the vacuum is upright or released because if.

Kenmore Intelliclean Vacuum Manual

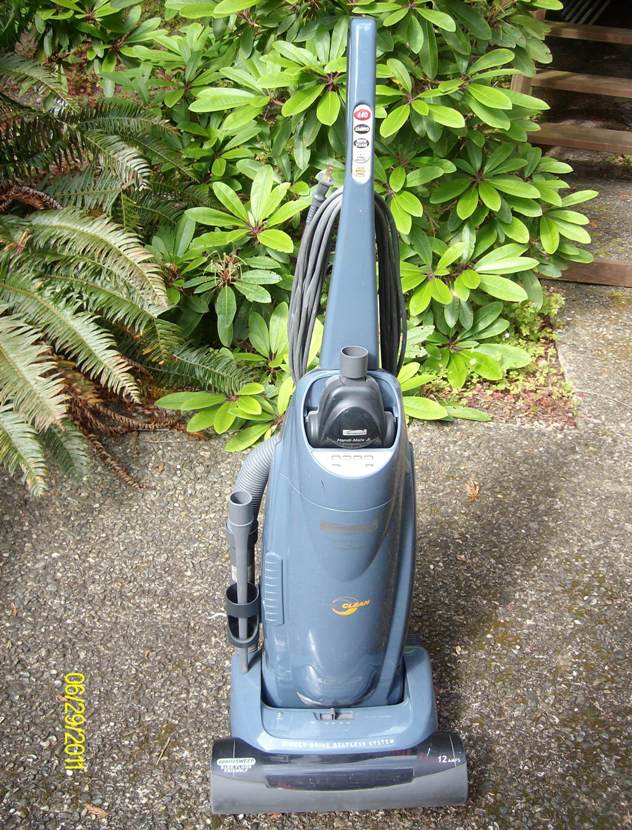

If the agitator bar does not spin when your Kenmore Progressive upright vacuum cleaner is turned on, you have a broken or stretched belt. The vacuum's belt turns the agitator bar to clean your carpets. A broken or stretched belt won't turn the bar, making your vacuum cleaner useless. This is a common repair that you can do at home in a matter of minutes. Purchase a UB-1 belt and replace the old belt to repair your vacuum.

1

Unplug the vacuum cleaner. Push the height selector button on the base of the vacuum forward to the carpet position, and turn it upside down.

2

Kenmore progressive with direct drive intelliclean user manual online

Push the latches in and push the locking tabs down on the base plate, and turn it away from the vacuum nozzle to expose the belt and agitator bar.

Kenmore Progressive With Direct Drive Intelliclean User Manual Software

3

Pull the belt off the shaft of the motor. Lift the agitator bar and slide the belt off its end to remove the old belt.

4

Slide a new UB-1 belt over the shaft of the motor, then slide it over end of the agitator bar. Inspect the belt to make sure it is in the center of the belt groove on the agitator bar.

5

Line up the square extensions on the ends of the agitator bar with the slots on the vacuum and push the agitator bar down to reinstall it.

6

Turn the base plate toward the vacuum nozzle and push the latches out to reinstall the base plate.
